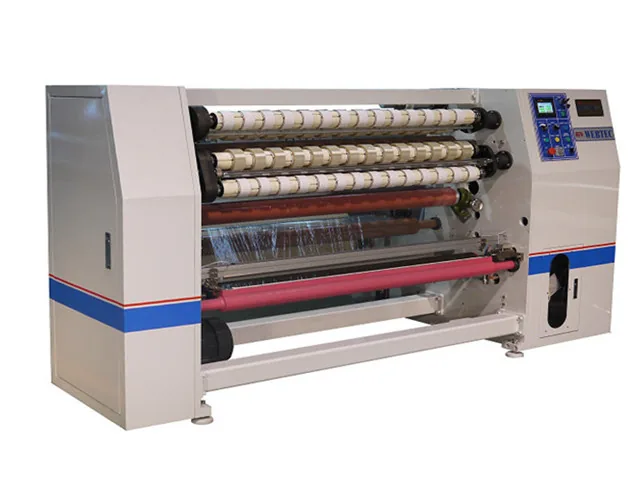

Slitter/RewinderSlitter
HY-BA
4 shafts auto turret exchange, suitable for slitting/rewinding OPP packaging & stationery tapes.
- Speed
- 200M / Min
- Width
- 1.0M / 1.3M / 1.6M / 2.0M
- Max. rewind Ø
- 150mm
Adhesive tape
Converting machinery · Taiwan · since 1973
Precision slitting, rewinding and roll cutting.
WEBTEC Industries builds slitter/rewinders, roll rewinders and log roll cutters for tapes, films and papers. Clients include 3M, Nitto Denko and tesa.
- Founded in Taiwan
- 1973
- Founded in Taiwan
- Standard models
- 44
- Standard models
- Machine families
- 3
- Machine families
Loading 3D model…
Slitter/rewinder · 3D model · drag to rotate
Clients include
- 3M
- Nitto Denko
- Saint-Gobain
- Sony Chemical
- tesa
- Shurtape
- Scapa
- Asia Chemical
- Teraoka
Product range
Slitter/rewinders, roll cutters and roll rewinders
53+
years in converting
About WEBTEC Industries
Converting machinery since 1973.
Founded in Taiwan in 1973, WEBTEC started building slitting equipment in 1975. Today we supply log roll cutters, slitters, rewinders and doctor rewinders for films, papers and tapes, as well as bespoke machines for the packaging and converting industry.
Every machine is designed, manufactured and assembled in our own factory in New Taipei City.
Why WEBTEC
How WEBTEC builds and supports its machines
Built in our own factory
Every machine is designed, manufactured and assembled in-house in New Taipei, under a scrutinised production procedure before delivery.
Bespoke machines
Beyond 44 standard models we build custom machines for specific packaging and converting requirements.
Servo & PLC control
PLC central control with LCD touch panels across the range; servo-driven width setting and knife angle on our roll cutters.
Material versatility
Adhesive tapes, PET/PI/PC films, papers, label stocks and optical films. Some models are designed for clean room use.
After-sales & online support
Complete after-sales service, instant technical support and an online error-code system for customers in every time zone.
International presence
Headquarters in Taiwan with agents in the United States and the Netherlands.
Exploded view
Inside a WEBTEC slitter/rewinder
Scroll to take the machine apart. Every module is designed, built and assembled in our own factory in Taiwan.
1Unwind base
Connected or separated, shaft or shaftless. Holds the master roll with automatic unwind tension control.
2Web guide (E.P.C.)
Automatic web guide keeps the material running straight into the slitting section.
3Tension control
Dancer and powder-brake or motor-driven tension keep the web stable at speed.
4Slitting section
Interchangeable shear cutter, air score knife or razor blade, depending on model.
5Lay-on roller
Presses the strips evenly onto the cores for smooth, air-free finished rolls.
6Rewind shafts
Air or differential shafts; center, center-surface or 4-shaft turret winding.
7Trim removal
Traverse winding or suction blower units collect edge trim continuously.
8PLC + LCD touch panel
Central PLC control with touch panel operation across the range.
Schematic illustration · configuration varies per model
Featured machines
A selection from the range
- Slitter/Rewinder
- Slitter/Rewinder

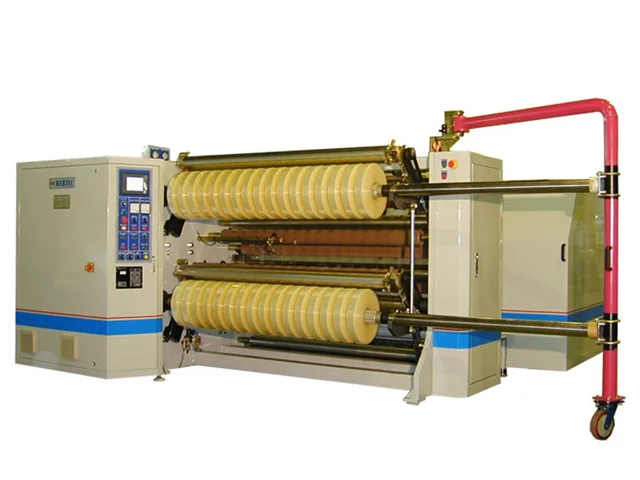

Slitter
HY-TCA
2 shafts center type winding, suitable for slitting various self-adhesive tapes.
- Speed
- 300M / Min
- Width
- 1.3M / 1.6M
- Max. rewind Ø
- 600mm
Adhesive tape

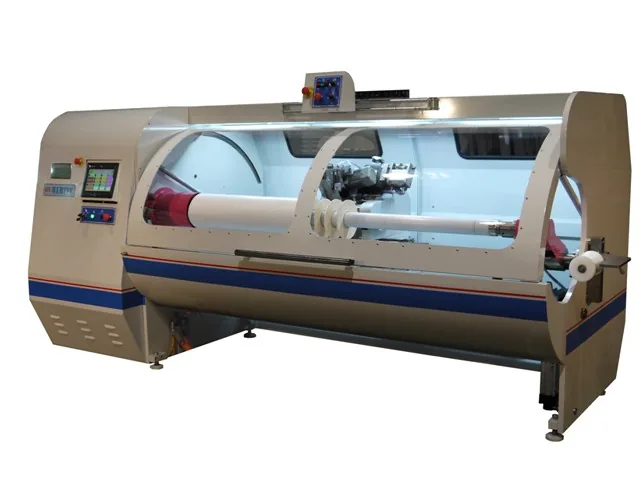

Roll CutterLog Roll Cutter
HY-FSA
Suitable for cutting masking, double sided, foam & cloth tapes, etc.
- Width
- 1.3M / 1.6M
- Max. cutting Ø
- 400mm
- Min. cut width
- 2mm
Adhesive tape

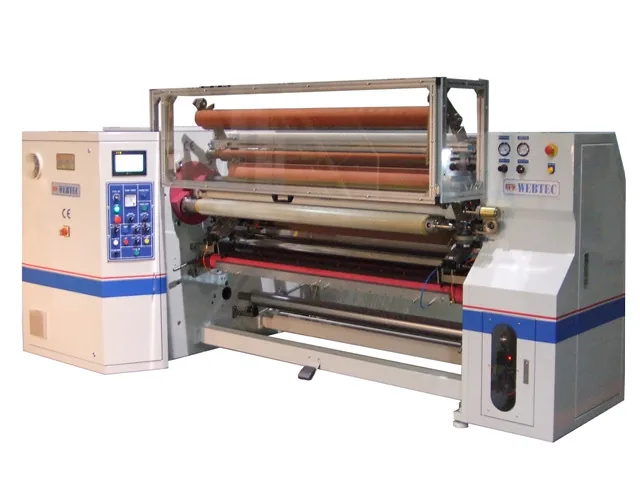

Roll RewinderRewinder
HY-GAS
2 shafts auto exchange, suitable for rewinding various self-adhesive tapes.
- Speed
- 120M / Min
- Width
- 1.3M / 1.6M
- Max. rewind Ø
- 180mm
Adhesive tape
Contact
Talk to our engineers
Send us your material and roll sizes. We recommend a machine and send a quotation.
